BAK9698 | Klauke

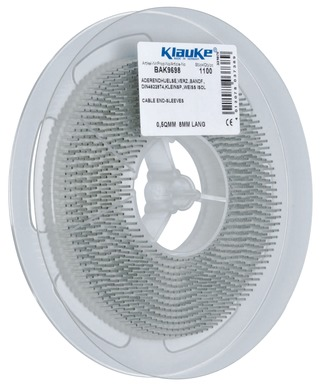

Insulated wire end ferrule, 0.5 mm², 14 mm/8 mm long, DIN 46228/4, white, BAK9698
Order No.: 18H7524
EAN: 4012078037389
MPN:
BAK9698
Unit Price (€ / pc.)
0.0357 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Wire end ferrule, BAK9698, KLAUKE
Insulated wire-end, small coil, for fine and superfine stranded conductors, according to DIN EN 60228 Cl. 5 and 6. Easy-Entry insulation for splice-free cable insertion. Colour-coding and tube dimension to DIN 46228, part 4.
Features
- Automatic processing due to coil shape
- Halogen free
- Tin plated to protect against corrosion
Technical specifications
Colour | white | |
Material Insulation | polypropylene | |
Isolated | Yes | |
Contact material | copper | |
Length | 14 mm | |
Cable cross-section | 0.5 mm² | |
max. operating temperature | 105 °C | |
Standard number | DIN 46228/4 | |
Pin lenght | 8 mm |
Download
Logistics
Country of origin | DE |
Customs tariff number | 85369010 |
Original Packaging | Reel with 1,100 pieces |
Compliance
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
