1603/16 | Kleinhuis
Sealing ring, PG16, Clamping range 7.5 to 15 mm, black, 1603/16
Order No.: 16N876
EAN: 4099891198992
MPN:
1603/16
Unit Price (€ / pc.)
0.5831 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
0.58 € *
Price list
Quantity
Price per unit*
100 pcs.
0.5831 €
500 pcs.
0.5474 €
*incl. VAT plus shipping costs
**Subject to prior sale

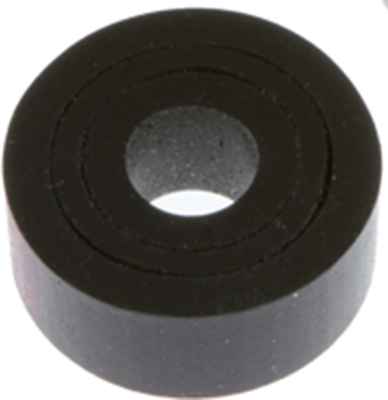

Cut-out seal rings for cable glands, type 1603.
Compliant with DIN 46320; Material: SBR/NBR (styrene nitrile butadiene rubber). Operating temperatures: –30 to +100 °C.

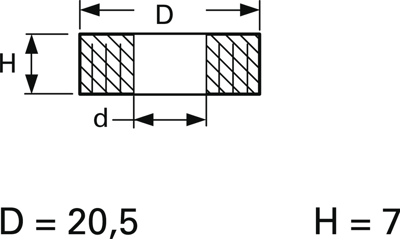

Technical attributes (type, rated size (Pg), inner or notch diameter from/to (Id), outer diameter (OD), height (H)): 1603/16, seal ring, Pg 16, Id 7.5/15, OD 20.5, H 7.0 mm
Technical specifications
| Version | sealing ring | |
| Colour | black | |
| Thread size | PG16 | |
| Material | SBR/NBR | |
| max. clamping range | 15 mm | |
| max. operating temperature | 100 °C | |
| min. clamping range | 7.5 mm | |
| min. operating temperature | -40 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 40169997 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
