1603/21 | Kleinhuis

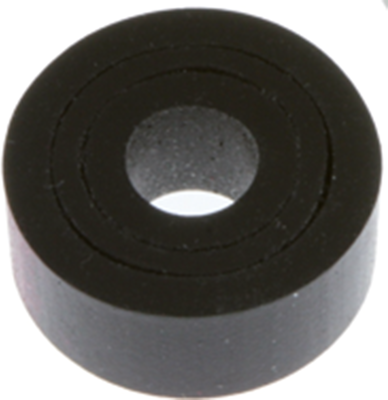

Sealing ring, PG21, Clamping range 10 to 19 mm, black, 1603/21
Order No.: 16N878
EAN: 4099891199005
MPN:
1603/21
Unit Price (€ / pc.)
0.8092 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
80.92 € *
Price list
Quantity
Price per unit*
100 pcs.
0.8092 €
500 pcs.
0.7616 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cut-out seal rings for cable glands, type 1603.
Compliant with DIN 46320; Material: SBR/NBR (styrene nitrile butadiene rubber). Operating temperatures: –30 to +100 °C.

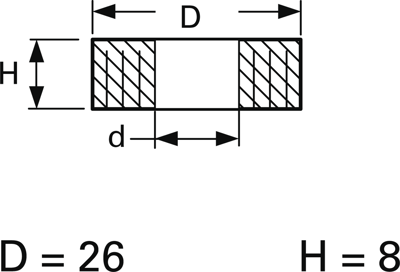

Technical attributes (type, rated size (Pg), inner or notch diameter from/to (Id), outer diameter (OD), height (H)): 1603/21, seal ring, Pg 21, Id 10/19, OD 26, H 8.0 mm
Technical specifications
| Colour | schwarz | |
| Thread size | PG21 | |
| Material | SBR/NBR | |
| max. clamping range | 19 mm | |
| max. operating temperature | 100 °C | |
| min. clamping range | 10 mm | |
| min. operating temperature | -40 °C | |
| Product type | Dichtring |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 40169300 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
