744/16 | Kleinhuis

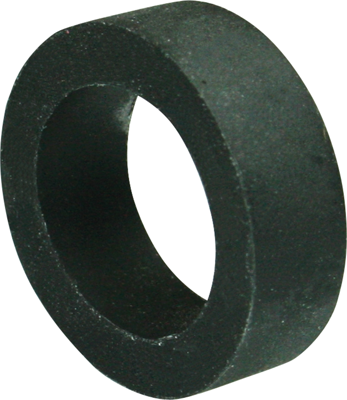

Sealing ring, (W x H) 2.4 x 6.5 mm, SBR/NBR, black, for PG16, 744/16
Order No.: 16N938
EAN: 4099891197445
MPN:
744/16
Unit Price (€ / pc.)
0.3011 € *
Available: 0 pcs.
Leadtime: On Request **
Seal rings for cable glands, type 744/.
Compliant with DIN 46320; Material: SBR/NBR (styrene nitrile butadiene rubber). Operating temperatures: –30 to +100 °C.

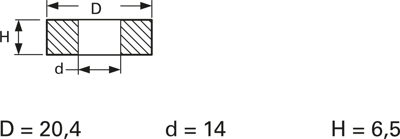

Technical attributes (type, rated size, inner diameter (d), outer diameter (OD), height or sealing ring thickness (H)): 016, seal ring, Pg 16, d 14, OD 20.4, H 6.5 mm
Technical specifications
| Width | 2.4 mm | |
| Colour | black | |
| Suitable for | PG16 | |
| Height | 6.5 mm | |
| Material | SBR/NBR | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -30 °C | |
| Accessory Type | sealing ring |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 40169997 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
