13 96 200 | Knipex

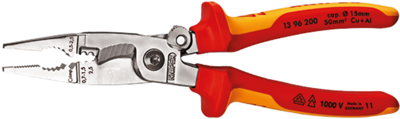

Pliers for Electrical Installation 200 mm, 13 96 200
Order No.: 05L2706
EAN: 4003773075110
MPN:
13 96 200
1396200
Unit Price (€ / pc.)
61.8800 € *
Available: 3 pcs.
Available in 7 Days: 10 pcs.
Leadtime: 3 Weeks **
Total Price:
61.88 € *
Price list
Quantity
Price per unit*
1 pcs.
61.8800 €
6 pcs.
55.6920 €
*incl. VAT plus shipping costs
**Subject to prior sale

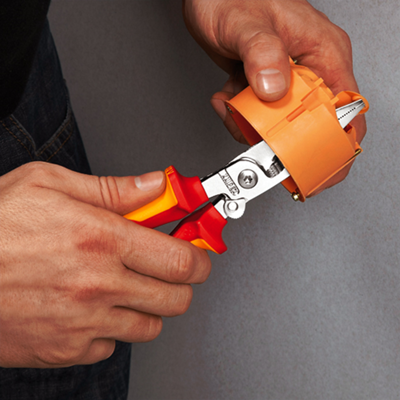

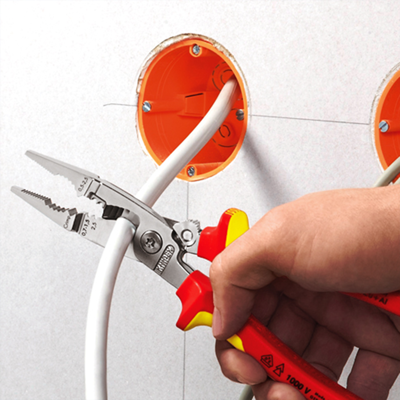

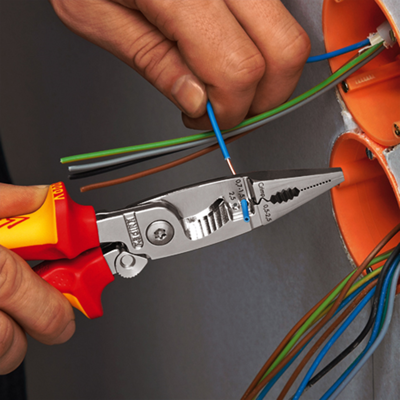

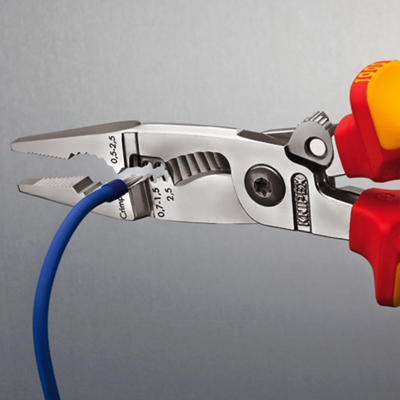

6 functions in one pair of pliers. Multifunctional pliers for the electrical installation- to grip flat and round material, for bending, deburring, cutting cable, stripping and crimping end sleeves (ferrules). Smooth surfaces near the tips grip single cores without damaging them- serrated gripping surfaces and pipe grip for gripping flat and round material. Clear-cut outside edge on the jaw for working on flush-mounted junction boxes and deburring feed-through holes. Stripping holes for conductors of 0.75 - 1.5 mm² and 2.5 mm². Crimp die for wire-end ferrules 0.5 - 2.5 mm². Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / dia. 15 mm. Gripping, without opening the pliers completely (intelligent latching mechanism in the spring assisted version). The cutting edge remains closed and protected. Slim dimensions for easy access. Bolted joint: precise, zero backlash operation of pliers Model: In case of models with opening spring integrated in the joint, the activated locking lever keeps the cutting edges closed while other functions remain active. The intelligent latching mechanism enables you to ''grip'' without opening the pliers. The cutting edge remains closed and protected..
Technical specifications
| Version | electric installation pliers | |
| ESD protection | No | |
| Weight | 280 g | |
| Length | 200 mm | |
| 1000V Insulated | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 82032000 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
