97 43 66 | Knipex

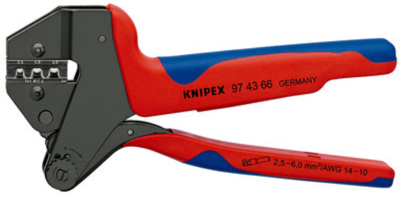

Crimping pliers for MC4 Multi-Connect, 2.5-6.0 mm², AWG 20-10, Knipex 97 43 66

Order No.: 22L1999
EAN: 4003773087779
MPN:
97 43 66
97 43 66 Knipex Crimping and Cable Lug Pliers
Image may differ
Unit Price (€ / pc.)
254.6481 € *
Available: 0 pcs.
Available in 7 Days: 10 pcs.
Leadtime: 3 Weeks **
Total Price:
254.65 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
254.6481 €

Crimp system pliers, 97 43 66, Knipex

The 97 43 66 crimp system pliers have consistently high crimping quality thanks to precision dies and ratchet mechanism (unlockable). Optimum transmission of force due to lever action for fatigue-reduced operation. Crimping pressure has been set precisely (calibrated) in the factory, re-adjustable.

Features

  • Ergonomically designed handles
  • Different locators for precise positioning of the connectors
  • The crimping die can be easily exchanged using two screws
  • With attached crimping dies for MC4 photovoltaic cable connectors (2.5 / 4 / 6 mm²)
Technical specifications
Suitable for MC4 Multi-Connect
Crimping Range (mm²) 2,5-6,0 mm²
Crimping Range (AWG) AWG 20-10
Length 200 mm
Weight 618 g
Logistics
Country of origin DE
Customs tariff number 82032000
Compliance
RoHS conform not_relevant
Date of RoHS guidelines 3/31/15
SVHC free Yes
