97 52 04 | Knipex

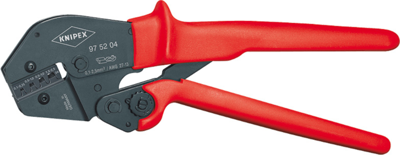

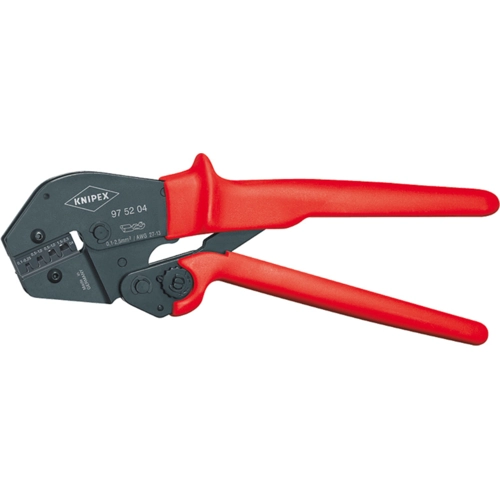

Crimping pliers for non-insulated connector, 0.1-2.5 mm², AWG 26-14, Knipex 97 52 04
Order No.: 20L4500
EAN: 4003773025450
MPN:
97 52 04
975204
Unit Price (€ / pc.)
153.510 € *
Available: 0 pcs.
Available in 7 Days: 10 pcs.
Leadtime: 3 Weeks **
Total Price:
153.51 € *
Price list
Quantity
Price per unit*
1 pcs.
153.510 €
3 pcs.
138.159 €
*incl. VAT plus shipping costs
**Subject to prior sale
For solder-free electrical connections. The ingenious lever transmission reduces the handforce up to 30% compared with regular crimping pliers. Repetitive, high crimping quality due to precision dies and integral lock (self-releasing mechanism). Crimping pressure has been set precisely (calibrated) in the factory, re-adjustable. Two-hand operation for easy crimping of large conductor diameters. Easy handling as a result of well balanced centre of gravity, angled head and ergnomically shaped handles. Chrome vanadium electric steel in special quality, oil-hardened
Technical specifications
| Crimping Range (AWG) | AWG 26-14 | |
| Crimping Range (mm²) | 0.1-2.5 mm² | |
| Suitable for | non-insulated connector | |
| Weight | 562 g | |
| Length | 250 mm |
Download
Logistics
| Customs tariff number | 82032000 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
