77 02 115 | Knipex
Side cutter, 115 mm, 80 g, cut capacity (1.6/1.2/0.6 mm/–), 77 02 115
Order No.: 05L2530
EAN: 4003773039334
MPN:
77 02 115
7702115
Unit Price (€ / pc.)
43.9824 € *
Available: 3 pcs.
Available in 7 Days: 10 pcs.
Leadtime: 3 Weeks **
Total Price:
43.98 € *
Price list
Quantity
Price per unit*
1 pcs.
43.9824 €
6 pcs.
39.5794 €
*incl. VAT plus shipping costs
**Subject to prior sale

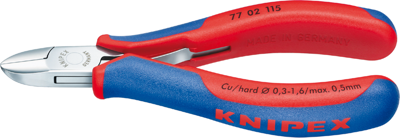

Diagonal cutter, 77 02 115, Knipex
For fine cutting work, e.g. in electronics and fine mechanics. Sturdy, zero-backlash box joint. Low-friction double spring for gentle and even opening. The polish or mirror polish (only finish 2) together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools. Cutting edges additionally induction hardened. High-grade special tool steel, forged, multi stage oil-hardened Model: Round head, with small bevel. Cutting edge hardness approx. 60 HRC.
Technical Data
- Material: Special steel
- Weight: 80 g
- Length: 115 mm
Technical specifications
| Version | side cutter | |
| ESD protection | No | |
| Weight | 80 g | |
| Length | 115 mm | |
| Material | special steel | |
| Cutting edge | with facet | |
| Cutting capicity (hard) | 0.6 mm | |
| Cutting capacity (medium-hard) | 1.2 mm | |
| Cutting capacity (soft) | 1.6 mm | |
| 1000V Insulated | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 82032000 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
