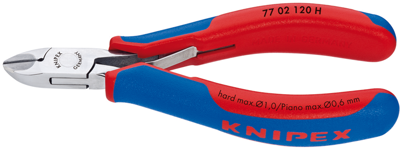

77 02 120 H | Knipex
Side cutter, 120 mm, 85 g, cut capacity (2/1.4/1/0.6 mm), 77 02 120 H
Order No.: 05L2537
EAN: 4003773075783
MPN:
77 02 120 H
7702120H
Unit Price (€ / pc.)
120.1067 € *
Available: 0 pcs.
Available in 7 Days: 10 pcs.
Leadtime: 3 Weeks **
Total Price:
120.11 € *
Price list
Quantity
Price per unit*
1 pcs.
120.1067 €
3 pcs.
108.0996 €
*incl. VAT plus shipping costs
**Subject to prior sale

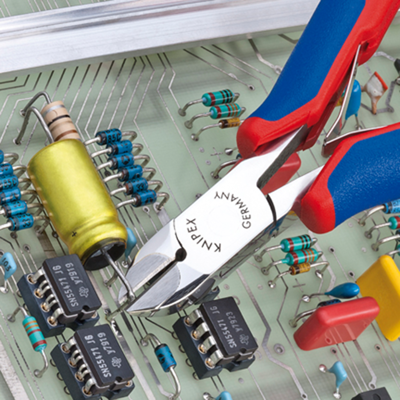

For extreme demands on cutting pliers caused by hard or tough materials, e.g. piano, nickel, tungsten and diode wire, such as those used more frequently in the electronics and aerospace industries. Always the right cutting tool, even with the hardest material. Precision carbide metal cutting edges soldered into forged blanks. Sturdy, zero-backlash box joint. Hardness of the carbide cutting edges 80 - 83 HRC. Pliers with carbide metal cutting edges have a substantially longer service life than such with conventional cutting edges. Constantly reliable cutting results due to the avoidance of cutter deformations. High cost saving due to longer service life of the pliers
Technical specifications
| Version | Seitenschneider | |
| ESD protection | No | |
| Weight | 85 g | |
| Length | 120 mm | |
| Material | Stahl | |
| Cutting edge | mit Wate | |
| Cutting capicity (hard) | 1 mm | |
| Cutting capacity (medium-hard) | 1.4 mm | |
| Cutting capicity (Piano wire) | 0.6 mm | |
| Cutting capacity (soft) | 2 mm | |
| 1000V Insulated | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 82032000 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
