77 02 135 H ESD | Knipex

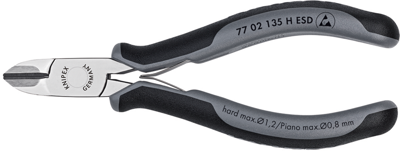

ESD side cutter, 135 mm, 115 g, cut capacity (2.2/1.6/1.2/0.8 mm), 77 02 135 H ESD
Order No.: 05L2531
EAN: 4003773075837
MPN:
77 02 135 H ESD
7702135HESD
Unit Price (€ / pc.)
118.8810 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
118.88 € *
Price list
Quantity
Price per unit*
1 pcs.
118.8810 €
3 pcs.
106.9929 €
*incl. VAT plus shipping costs
**Subject to prior sale
For extreme demands on cutting pliers caused by hard or tough materials, e.g. piano, nickel, tungsten and diode wire, such as those used more frequently in the electronics and aerospace industries. Always the right cutting tool, even with the hardest material. Precision carbide metal cutting edges soldered into forged blanks. Sturdy, zero-backlash box joint. Hardness of the carbide cutting edges 80 - 83 HRC. Pliers with carbide metal cutting edges have a substantially longer service life than such with conventional cutting edges. Constantly reliable cutting results due to the avoidance of cutter deformations. High cost saving due to longer service life of the pliers. Electrically discharging handles - dissipative
Technical specifications
| Ausführung | Seitenschneider | |
| ESD-Schutz | Yes | |
| Gewicht | 115 g | |
| Länge | 135 mm | |
| Material | Spezialstahl | |
| Schneide | mit Wate | |
| Schneidkapazität (hart) | 1.2 mm | |
| Schneidkapazität (mittelhart) | 1.6 mm | |
| Schneidkapazität (Pianodraht) | 0.8 mm | |
| Schneidkapazität (weich) | 2.2 mm | |
| VDE-/1000V-geprüft | No |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 82032000 |
Compliance
| RoHS konform | not_relevant |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
