77 32 120 H ESD | Knipex

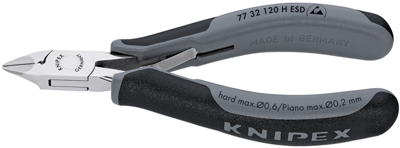

ESD side cutter, 120 mm, 80 g, cut capacity (1.6/1/0.6/0.2 mm), 77 32 120 H ESD
Order No.: 05L2535
EAN: 4003773075820
MPN:
77 32 120 H ESD
7732120HESD
As an alternative, we recommend the following item:
ESD side cutter, 115 mm, 80 g, cut capacity (1.3/0.8 mm/–/–), 77 42 115 ESD
Order No.: 05L2547
Manufacturer: Knipex
per pc. 47.8261 € *
*incl. VAT plus shipping costs
For extreme demands on cutting pliers caused by hard or tough materials, e.g. piano, nickel, tungsten and diode wire, such as those used more frequently in the electronics and aerospace industries. Always the right cutting tool, even with the hardest material. Precision carbide metal cutting edges soldered into forged blanks. Sturdy, zero-backlash box joint. Hardness of the carbide cutting edges 80 - 83 HRC. Pliers with carbide metal cutting edges have a substantially longer service life than such with conventional cutting edges. Constantly reliable cutting results due to the avoidance of cutter deformations. High cost saving due to longer service life of the pliers. Electrically discharging handles - dissipative Model: Pointed head with chamfer. With small bevel.

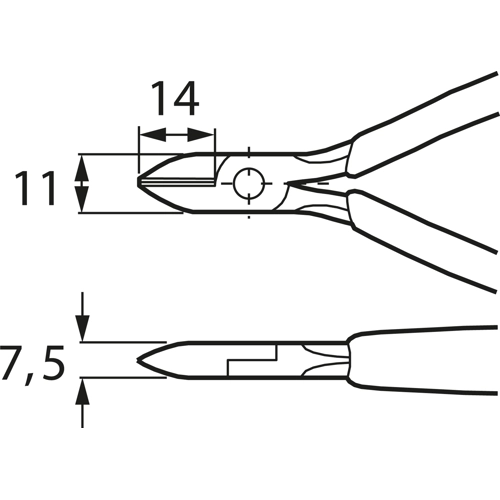

Technical specifications
| Version | Seitenschneider | |
| ESD protection | Yes | |
| 1000V Insulated | No | |
| Length | 120 mm | |
| Weight | 80 g | |
| Cutting edge | mit Wate | |
| Cutting capacity (soft) | 1.6 mm | |
| Cutting capacity (medium-hard) | 1 mm | |
| Cutting capicity (hard) | 0.6 mm | |
| Cutting capicity (Piano wire) | 0.2 mm | |
| Material | Stahl |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 82032000 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
