12 40 200 | Knipex

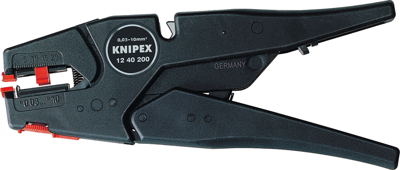

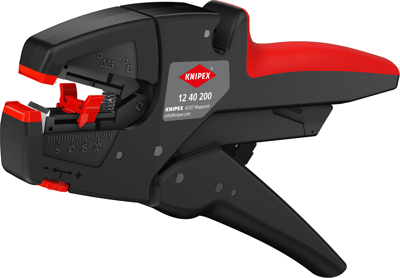

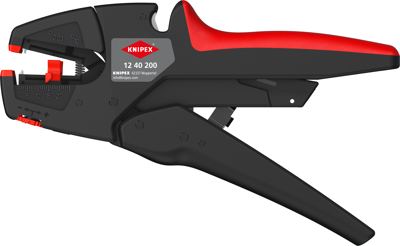

Stripping pliers for plastic-coated cables, rubber-coated cables, 0.03-10 mm², AWG 32-8, cable-Ø 3-18 mm, L 200 mm, 202 g, 12 40 200
Order No.: 05L7806
EAN: 4003773026662
MPN:
12 40 200
1240200
Unit Price (€ / pc.)
80.8010 € *
Available: 4 pcs.
Leadtime: 3 Weeks **
Total Price:
80.80 € *
Price list
Quantity
Price per unit*
1 pcs.
80.8010 €
6 pcs.
72.7209 €
*incl. VAT plus shipping costs
**Subject to prior sale

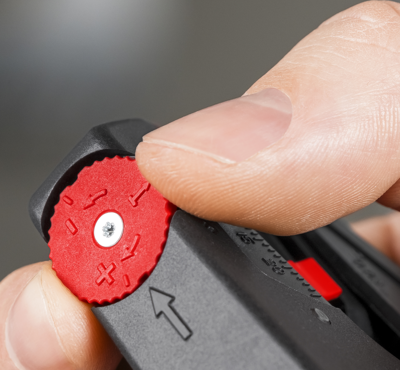

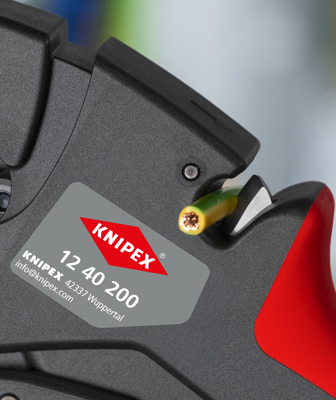

For single, multiple and fine stranded conductors with plastic or rubber insulation. Adapts automatically to the respective cable cross-section- prevents damage to the conductor. Cutting depth can be adjusted for different insulation materials. With wire cutter for copper and aluminium wires, multiple stranded up to 10 mm² and single stranded up to 6 mm². Smoothly operating mechanism. Stripping blades and clamping jaws easily replaceable. Low weight. Body: plastic, fibreglass-reinforced. Blade: special tool steel, oil-hardened Model: For thin ribbon cables up to 10.0 mm width in a single pass.
Technical specifications
| Ausführung | Abisolierzange | |
| AWG-Leiterquerschnitt | AWG 32-8 | |
| Geeignet für | Leiter mit Kunststoff-Isolation, Leiter mit Gummi-Isolation | |
| Gewicht | 202 g | |
| Länge | 200 mm | |
| Leiterdurchmesser | 3-18 mm | |
| Leiterquerschnitt | 0,03-10 mm² | |
| VDE-/1000V-geprüft | No |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 82032000 |
Compliance
| RoHS konform | not_relevant |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
