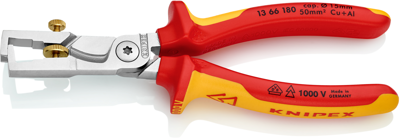

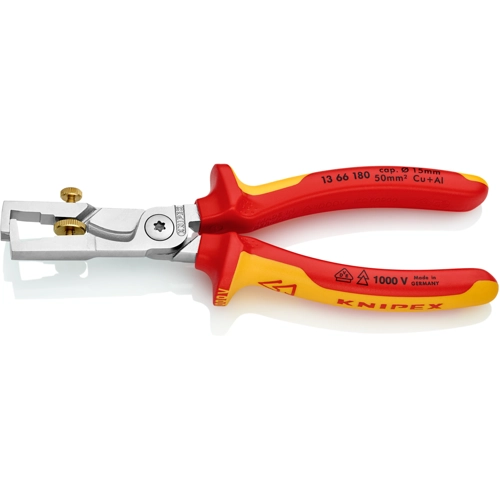

13 66 180 | Knipex

VDE-stripping pliers for Cu Wires, 10 mm², AWG 8, cable-Ø 5 mm, L 180 mm, 213 g, 13 66 180

Order No.: 22L1754
EAN: 4003773081319
MPN:
13 66 180
1366180
Series: STRIX
Knipex
13 66 180 Knipex Stripping Pliers, Stripping Tools
Image may differ
Unit Price (€ / pc.)
58.310 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
58.31 € *
Price list
Quantity
Price per unit*
1 pcs.
58.310 €
6 pcs.
52.479 €
*incl. VAT plus shipping costs
**Subject to prior sale
For single, multiple and fine stranded conductors with plastic or rubber insulation up to 5.0 mm dia. or 10 mm² cable cross-section. Increments in the jaw provide a visual orientation aid for stripping consistent lengths (11 mm and 16 mm). Easy adjustment to the required diameter of solid or stranded wire with knurled screw and lock nut. Shear blade for cutting copper and aluminium cable up to Ø 15 mm (5 x 2.5 mm²). Slim dimensions for easy access. Bolted joint: precise, zero backlash operation of pliers. High-grade special tool steel, forged, multi stage oil-hardened
Technical specifications
Stripping Length 16 mm
Version stripping pliers
AWG cross-section AWG 8
Suitable for Cu Wires
Weight 213 g
Length 180 mm
Cable Diameter 5 mm
Cable cross-section 10 mm²
1000V Insulated Yes
Logistics
Country of origin DE
Customs tariff number 82032000
Compliance
RoHS conform not_relevant
Date of RoHS guidelines 3/31/15
SVHC free Yes
