92 09 05 ESD | Knipex

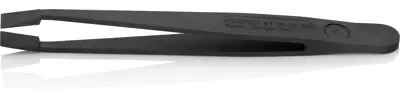

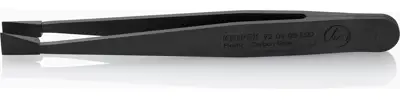

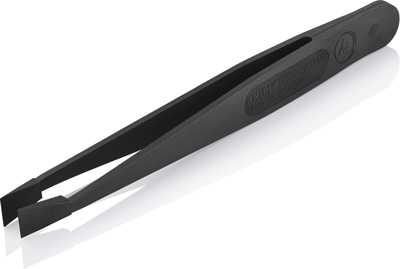

ESD plastic tweezers, insulated, antimagnetic, Carbon fibre plastic, 115 mm, 92 09 05 ESD
Order No.: 22L1879
EAN: 4003773087014
MPN:
92 09 05 ESD
Unit Price (€ / pc.)
6.3427 € *
Available: 0 pcs.
Available in 7 Days: 10 pcs.
Leadtime: 3 Weeks **
Total Price:
6.34 € *
Price list
Quantity
Price per unit*
1 pcs.
6.3427 €
6 pcs.
6.0333 €
12 pcs.
5.7239 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plastic tweezer, 92 09 05 ESD, Knipex

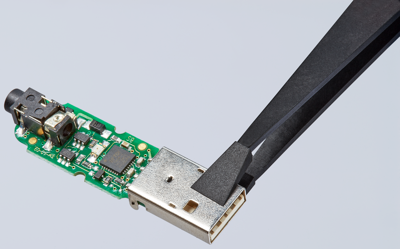

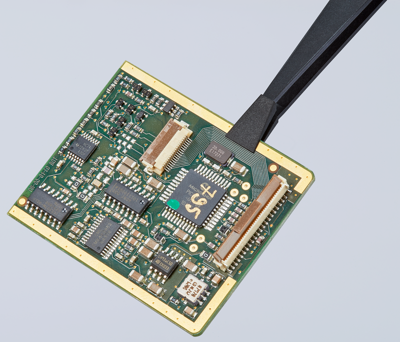

The 92 09 05 ESD is made of 30% carbon fibre reinforced plastic, it is electrically and thermally highly conductive and is characterised by high resistance to abrasion and scratching. Also, this product is ideal for maximum surface protection when handling sensitive electronic components.
Features
- Surface resistance between 10^2 and 10^3 ohms
- Temperature-stable up to 130° C, short-term use is possible at up to 190° C
- Fatigue-resistant, vibration-reducing and water-repellent
- Chemical resistance (oils, greases, fuels and nonpolar solvents)
Applications
- Electronic components
- Micro-mechanical parts
- Glass and ceramic components
Technical specifications
| Anti-magnetic | Yes | |
| Version | plastic tweezers | |
| Resistant to | Corrosion | |
| Chemical resistant | Yes | |
| ESD protection | Yes | |
| Isolated | Yes | |
| Length | 115 mm | |
| Material | Carbon fibre plastic | |
| UV-resistant | No |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 82032000 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
