03.302.054.1 | Knürr

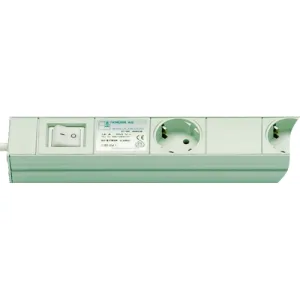

Outlet strip, 4-way, 2.5 m, 16 A, gray, 03.302.054.1
Order No.: 07L4691
EAN: 4099891431495
MPN:
03.302.054.1
DI-STRIP D Classic 4Do+Scha
Series: DI-STRIP CLASSIC
Unit Price (€ / pc.)
104.7200 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
104.72 € *
Price list
Quantity
Price per unit*
1 pcs.
104.7200 €
5 pcs.
75.7435 €
*incl. VAT plus shipping costs
**Subject to prior sale
Schuko-style outlet strips, Knürr Di-Strip Classic.
With 2-pole switch, with or without illumination
Outlet angular position: 45°
Pitch: 100 mm
Dimensions: H 45.5 mm
Housing width: 44.4 mm (1 HU)
Rating: 100 to 240 VAC/16 A
Design: CE marking to low-voltage directive 73/23/EC and EMC directive 89/336/EC, VDE certification, DIN 49440
Housing: closed steel sheet profile, galvanized, powder-coated structure
Plastic components: Vampamide 6 0024 VO (UL 94 V-0)
Internal conductor: continuous busbars made of brass
Patch cord: H05VV-F3G 1.5 mm², 2.5 m, PVC, with molded angled plug. Supplied with mounting brackets. With pastel-orange color the plastic parts are light-gray RAL 7035.
With switch, type 03.302.
Technical specifications
| Abschaltbar | Yes | |
| Anzahl der Steckdosen | 4 | |
| Breite | 44.4 mm | |
| Farbe | grau | |
| Kabellänge | 2.5 m | |
| Länge | 533 mm | |
| Master-Slave | No | |
| Material | Stahlblech | |
| Nennstrom | 16 A | |
| Schutzart (IP) | IP20 | |
| Tiefe | 45.5 mm | |
| Überspannungsschutz | No | |
| USB-Anschluss | No |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
