D 20/4W 10% 10K | KRAH
Ceramic wire potentiometer, 10 kΩ, 4 W, linear, solder lug, D 20/4W 10% 10K
Unit Price (€ / pc.)
230.1222 € *
Available: 2 pcs.
Leadtime: 10 Weeks **
Total Price:
230.12 € *
Price list
Quantity
Price per unit*
1 pcs.
230.1222 €
5 pcs.
213.0814 €
10 pcs.
201.0148 €
25 pcs.
189.6384 €
50 pcs.
180.6063 €
*incl. VAT plus shipping costs
**Subject to prior sale
Ceramic wire-wound potentiometers, type KRAH-RWI D 20/4.
Rated power: 4.0 W. Max. load rating: 5.0 W/40 °C, compliant with DIN 41474. Tolerance: ±10 %, with 6.0 mm shaft. Shaft length: 15 mm. Test voltage: 1000 VAC. Mechanical/electrical range of adjustment: 270/250°.
Type: 10K

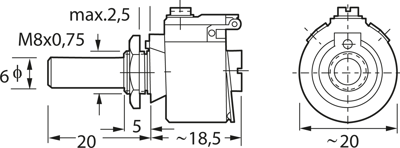

Technical specifications
| ohmic resistance | 10 kΩ | |
| Connection | solder lug | |
| Version | ceramic wire potentiometer | |
| Width | 18.5 mm | |
| Rotary range, electrical | 250 ° | |
| Mechanic rotary range | 270 ° | |
| axle diameter | 6 mm | |
| Length | 20 mm | |
| Power | 4 W | |
| Track Taper | linear |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85333100 |
| Original Packaging | Bulk with 6 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
