D 20/4W 10% 1K0 | KRAH

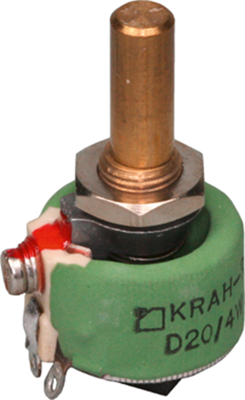

Ceramic wire potentiometer, 1 kΩ, 4 W, linear, solder lug, D 20/4W 10% 1K0
Unit Price (€ / pc.)
239.5232 € *
Available: 9 pcs.
Leadtime: 10 Weeks **
Total Price:
239.52 € *
Price list
Quantity
Price per unit*
1 pcs.
239.5232 €
6 pcs.
225.1480 €
12 pcs.
220.3642 €
24 pcs.
215.5685 €
*incl. VAT plus shipping costs
**Subject to prior sale
Ceramic wire-wound potentiometers, type KRAH-RWI D 20/4.
Rated power: 4.0 W. Max. load rating: 5.0 W/40 °C, compliant with DIN 41474. Tolerance: ±10 %, with 6.0 mm shaft. Shaft length: 15 mm. Test voltage: 1000 VAC. Mechanical/electrical range of adjustment: 270/250°.
Type: 1K0

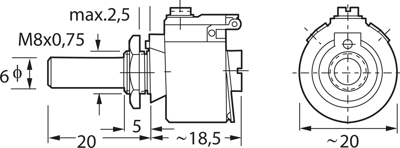

Technical specifications
| ohmic resistance | 1 kΩ | |
| Connection | solder lug | |
| Version | ceramic wire potentiometer | |
| Width | 18.5 mm | |
| Rotary range, electrical | 250 ° | |
| Mechanic rotary range | 270 ° | |
| axle diameter | 6 mm | |
| Length | 20 mm | |
| Power | 4 W | |
| Assembly | angled | |
| Track Taper | linear |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85333100 |
| Original Packaging | Bulk with 6 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
