D 20/4W 10% 220R | KRAH

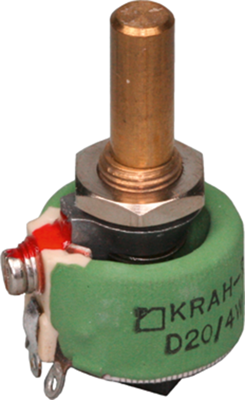

Ceramic wire potentiometer, 220 Ω, 4 W, linear, solder lug, D 20/4W 10% 220R
Unit Price (€ / pc.)
179.7138 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
179.71 € *
Price list
Quantity
Price per unit*
5 pcs.
179.7138 €
50 pcs.
113.3594 €
*incl. VAT plus shipping costs
**Subject to prior sale
Ceramic wire-wound potentiometers, type KRAH-RWI D 20/4.
Rated power: 4.0 W. Max. load rating: 5.0 W/40 °C, compliant with DIN 41474. Tolerance: ±10 %, with 6.0 mm shaft. Shaft length: 15 mm. Test voltage: 1000 VAC. Mechanical/electrical range of adjustment: 270/250°.
Type: 220R

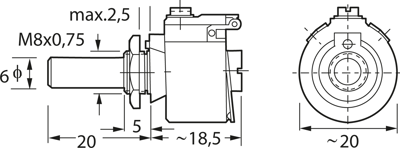

Technical specifications
| ohmscher Widerstand | 220 Ω | |
| Anschluss | Lötöse | |
| Ausführung | Keramik-Drahtpotentiometer | |
| Breite | 18.5 mm | |
| Drehbereich (elektrisch) | 250 ° | |
| Drehbereich (mechanisch) | 270 ° | |
| Durchmesser der Achse | 6 mm | |
| Länge | 20 mm | |
| Leistung | 4 W | |
| Montage | gewinkelt | |
| Widerstandsverlauf | linear |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 85333100 |
| Originalverpackung | Bulk mit 6 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
