D 20/4W 10% 22R | KRAH

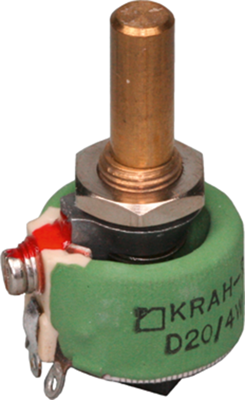

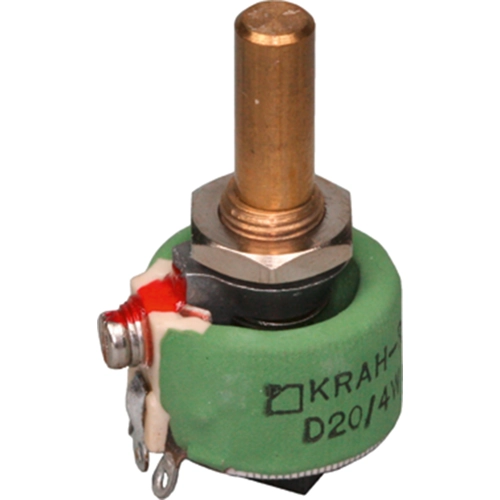

Ceramic wire potentiometer, 22 Ω, 4 W, linear, solder lug, D 20/4W 10% 22R
Unit Price (€ / pc.)
254.8266 € *
Available: 23 pcs.
Leadtime: 10 Weeks **
Total Price:
254.83 € *
Price list
Quantity
Price per unit*
1 pcs.
254.8266 €
6 pcs.
239.5232 €
12 pcs.
234.4419 €
24 pcs.
229.3368 €
*incl. VAT plus shipping costs
**Subject to prior sale
Ceramic wire-wound potentiometers, type KRAH-RWI D 20/4.
Rated power: 4.0 W. Max. load rating: 5.0 W/40 °C, compliant with DIN 41474. Tolerance: ±10 %, with 6.0 mm shaft. Shaft length: 15 mm. Test voltage: 1000 VAC. Mechanical/electrical range of adjustment: 270/250°.
Type: 22R

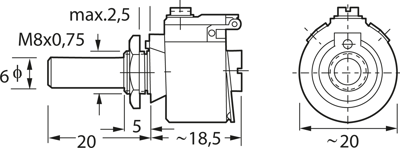

Technical specifications
| ohmscher Widerstand | 22 Ω | |
| Anschluss | Lötöse | |
| Ausführung | Keramik-Drahtpotentiometer | |
| Breite | 18.5 mm | |
| Drehbereich (elektrisch) | 250 ° | |
| Drehbereich (mechanisch) | 270 ° | |
| Durchmesser der Achse | 6 mm | |
| Länge | 20 mm | |
| Leistung | 4 W | |
| Montage | gewinkelt | |
| Widerstandsverlauf | linear |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 85333100 |
| Originalverpackung | Bulk mit 6 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
