D 32/10W 10% 10K | KRAH

Ceramic wire potentiometer, 10 kΩ, 10 W, linear, solder lug, D 32/10W 10% 10K

Order No.: 74E509
EAN: 4099879973399
MPN:
D 32/10W 10% 10K
Series: D32
KRAH

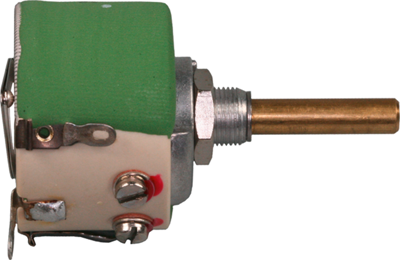

D 32/10W 10% 10K KRAH Potentiometers Image 1

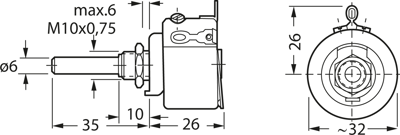

D 32/10W 10% 10K KRAH Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
313.4460 € *
Available: 3 pcs.
Leadtime: 10 Weeks **
Total Price:
313.45 € *
Price list
Quantity
Price per unit*
1 pcs.
313.4460 €
5 pcs.
297.7737 €
10 pcs.
291.5024 €
20 pcs.
285.2311 €
40 pcs.
278.9598 €
*incl. VAT plus shipping costs
**Subject to prior sale

Ceramic wire-wound potentiometers, type KRAH-RWI D 32/10.

Rated power: 10 W. Max. load rating: 20 W/40 °C, compliant with DIN 41475. Tolerance: ±10 %, with 6.0 mm shaft. Shaft length: 25 mm. Test voltage: 1000 VAC. Mechanical/electrical range of adjustment: 270/255°.

Type: 10K

Technical specifications
ohmic resistance 10 kΩ
Connection solder lug
Version ceramic wire potentiometer
Width 26 mm
Rotary range, electrical 255 °
Mechanic rotary range 270 °
axle diameter 6 mm
Length 32 mm
Power 10 W
Assembly straight
Track Taper linear
Logistics
Country of origin IT
Customs tariff number 85333100
Original Packaging Bulk with 5 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
