D 32/10W 10% 470R | KRAH
Ceramic wire potentiometer, 470 Ω, 10 W, linear, solder lug, D 32/10W 10% 470R
Unit Price (€ / pc.)
236.8100 € *
Available: 1 pcs.
Leadtime: 10 Weeks **
Total Price:
236.81 € *
Price list
Quantity
Price per unit*
1 pcs.
236.8100 €
5 pcs.
224.9814 €
10 pcs.
220.2333 €
20 pcs.
215.5090 €
40 pcs.
210.7728 €
*incl. VAT plus shipping costs
**Subject to prior sale

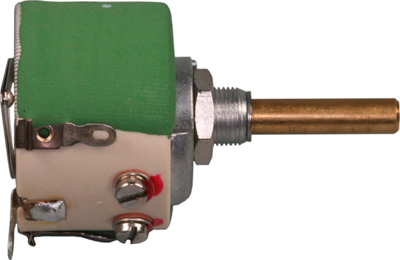

Ceramic wire-wound potentiometers, type KRAH-RWI D 32/10.
Rated power: 10 W. Max. load rating: 20 W/40 °C, compliant with DIN 41475. Tolerance: ±10 %, with 6.0 mm shaft. Shaft length: 25 mm. Test voltage: 1000 VAC. Mechanical/electrical range of adjustment: 270/255°.
Type: 470R

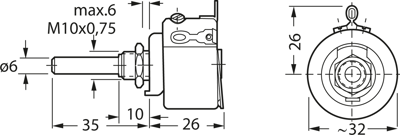

Technical specifications
| ohmscher Widerstand | 470 Ω | |
| Anschluss | Lötöse | |
| Ausführung | Keramik-Drahtpotentiometer | |
| Breite | 26 mm | |
| Drehbereich (elektrisch) | 255 ° | |
| Drehbereich (mechanisch) | 270 ° | |
| Durchmesser der Achse | 6 mm | |
| Länge | 32 mm | |
| Leistung | 10 W | |
| Montage | gerade | |
| Widerstandsverlauf | linear |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 85333100 |
| Originalverpackung | Bulk mit 5 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
