D 32/10W 10% 47R | KRAH

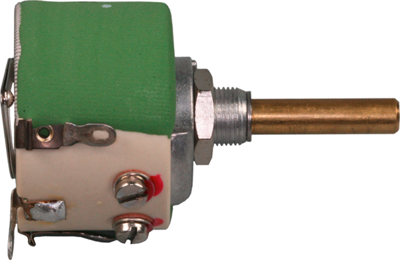

Ceramic wire potentiometer, 47 Ω, 10 W, linear, solder lug, D 32/10W 10% 47R
Unit Price (€ / pc.)
199.7415 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Ceramic wire-wound potentiometers, type KRAH-RWI D 32/10.
Rated power: 10 W. Max. load rating: 20 W/40 °C, compliant with DIN 41475. Tolerance: ±10 %, with 6.0 mm shaft. Shaft length: 25 mm. Test voltage: 1000 VAC. Mechanical/electrical range of adjustment: 270/255°.
Type: 47R
Technical specifications
| ohmic resistance | 47 Ω | |
| Connection | solder lug | |
| Version | ceramic wire potentiometer | |
| Width | 26 mm | |
| Rotary range, electrical | 255 ° | |
| Mechanic rotary range | 270 ° | |
| axle diameter | 6 mm | |
| Length | 32 mm | |
| Power | 10 W | |
| Assembly | straight | |
| Track Taper | linear |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85333100 |
| Original Packaging | Bulk with 5 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
