D 32/10W 10% 4K7 | KRAH

Ceramic wire potentiometer, 4.7 kΩ, 10 W, linear, solder lug, D 32/10W 10% 4K7

Order No.: 74E508
EAN: 4099879973382
MPN:
D 32/10W 10% 4K7
Series: D32
KRAH

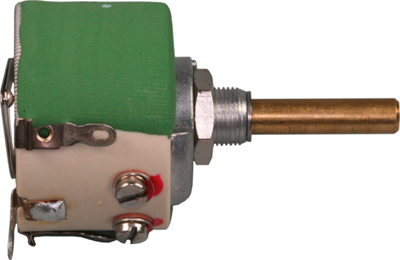

D 32/10W 10% 4K7 KRAH Potentiometers Image 1
D 32/10W 10% 4K7 KRAH Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
284.9574 € *
Available: 15 pcs.
Leadtime: 10 Weeks **
Total Price:
284.96 € *
Price list
Quantity
Price per unit*
1 pcs.
284.9574 €
5 pcs.
270.7131 €
10 pcs.
265.0011 €
20 pcs.
259.3129 €
40 pcs.
253.6128 €
*incl. VAT plus shipping costs
**Subject to prior sale

Ceramic wire-wound potentiometers, type KRAH-RWI D 32/10.

Rated power: 10 W. Max. load rating: 20 W/40 °C, compliant with DIN 41475. Tolerance: ±10 %, with 6.0 mm shaft. Shaft length: 25 mm. Test voltage: 1000 VAC. Mechanical/electrical range of adjustment: 270/255°.

Type: 4K7

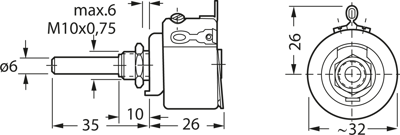

Technical specifications
ohmic resistance 4.7 kΩ
Connection solder lug
Version ceramic wire potentiometer
Width 26 mm
Rotary range, electrical 255 °
Mechanic rotary range 270 °
axle diameter 6 mm
Length 32 mm
Power 10 W
Assembly straight
Track Taper linear
Logistics
Country of origin IT
Customs tariff number 85333100
Original Packaging Bulk with 5 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
