D 40/20W 10% 220R | KRAH
Ceramic wire potentiometer, 220 Ω, 20 W, linear, solder lug, D 40/20W 10% 220R
Unit Price (€ / pc.)
296.3219 € *
Available: 1 pcs.
Next delivery: 4 pcs. on 2025-04-11
Leadtime: 10 Weeks **
Total Price:
296.32 € *
Price list
Quantity
Price per unit*
1 pcs.
296.3219 €
5 pcs.
281.4945 €
10 pcs.
275.5802 €
20 pcs.
269.6421 €
40 pcs.
263.7159 €
*incl. VAT plus shipping costs
**Subject to prior sale

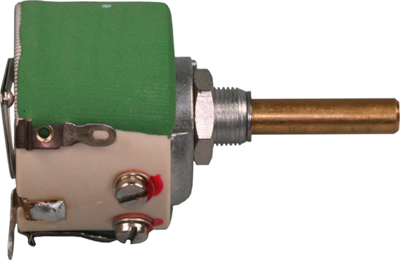

Ceramic wire-wound potentiometers, type KRAH-RWI D 40/20.
Rated power: 20 W. Max. load rating: 30 W/40 °C, compliant with DIN 41475. Tolerance: ±10 %, with 6.0 mm shaft. Shaft length: 25 mm. Test voltage: 2000 VAC. Mechanical/electrical range of adjustment: 270/258°.
Type: 220R
Technical specifications
| ohmscher Widerstand | 220 Ω | |
| Anschluss | Lötöse | |
| Ausführung | Keramik-Drahtpotentiometer | |
| Breite | 32 mm | |
| Drehbereich (elektrisch) | 258 ° | |
| Drehbereich (mechanisch) | 270 ° | |
| Durchmesser der Achse | 6 mm | |
| Länge | 40 mm | |
| Leistung | 20 W | |
| Montage | gerade | |
| Widerstandsverlauf | linear |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 85333900 |
| Originalverpackung | Bulk mit 5 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
