D 55/40W 10% 220R | KRAH
Ceramic wire potentiometer, 220 Ω, 40 W, linear, solder lug, D 55/40W 10% 220R
Unit Price (€ / pc.)
208.9640 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
208.96 € *
Price list
Quantity
Price per unit*
4 pcs.
208.9640 €
8 pcs.
189.9716 €
50 pcs.
128.7223 €
*incl. VAT plus shipping costs
**Subject to prior sale

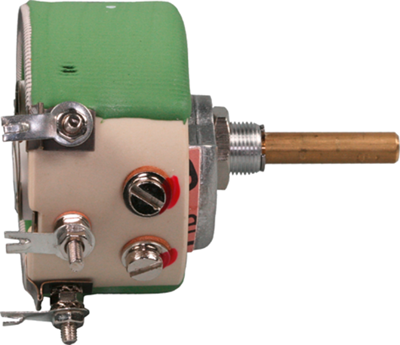

Ceramic wire-wound potentiometers, type KRAH-RWI D 55/40.

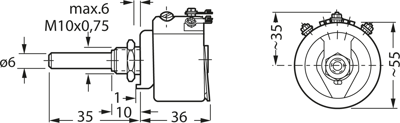

Rated power: 40 W. Max. load rating: 60 W/40 °C, compliant with DIN 41475. Tolerance: ±10 %, with 6.0 mm shaft. Shaft length: 25 mm. Test voltage: 2000 VAC. Mechanical/electrical range of adjustment: 280/270°.
Type: 220R
Technical specifications
| ohmscher Widerstand | 220 Ω | |
| Anschluss | Lötöse | |
| Ausführung | Keramik-Drahtpotentiometer | |
| Breite | 36 mm | |
| Drehbereich (elektrisch) | 270 ° | |
| Drehbereich (mechanisch) | 280 ° | |
| Durchmesser der Achse | 6 mm | |
| Länge | 55 mm | |
| Leistung | 40 W | |
| Montage | gerade | |
| Widerstandsverlauf | linear |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 85333900 |
| Originalverpackung | Bulk mit 4 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
