D 85/100W 10% 220R | KRAH
Ceramic wire potentiometer, 220 Ω, 100 W, linear, solder lug, D 85/100W 10% 220R
Unit Price (€ / pc.)
272.5576 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
272.56 € *
Price list
Quantity
Price per unit*
3 pcs.
272.5576 €
6 pcs.
267.1074 €
50 pcs.
244.3903 €
*incl. VAT plus shipping costs
**Subject to prior sale

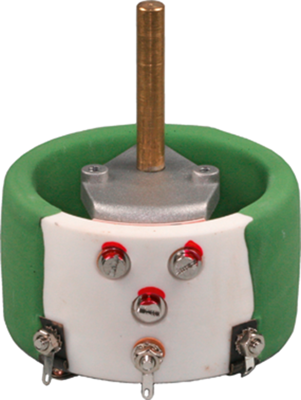

Ceramic wire-wound potentiometers, type KRAH-RWI D 85/100.

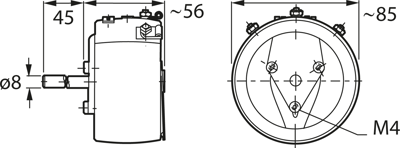

Rated power: 100 W. Max. load rating: 140 W/40 °C, compliant with DIN 41475. Tolerance: ±10 %, with 8.0 mm shaft. Shaft length: 45 mm. Test voltage: 2500 VAC. Mechanical/electrical range of adjustment: 280/270°.
Type: 220R
Technical specifications
| ohmscher Widerstand | 220 Ω | |
| Anschluss | Lötöse | |
| Ausführung | Keramik-Drahtpotentiometer | |
| Breite | 56 mm | |
| Drehbereich (elektrisch) | 270 ° | |
| Drehbereich (mechanisch) | 280 ° | |
| Durchmesser der Achse | 8 mm | |
| Länge | 85 mm | |
| Leistung | 100 W | |
| Montage | gerade | |
| Widerstandsverlauf | linear |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 85333900 |
| Originalverpackung | Bulk mit 3 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
