D 85/100W 10% 470R | KRAH
Ceramic wire potentiometer, 470 Ω, 100 W, linear, solder lug, D 85/100W 10% 470R
Unit Price (€ / pc.)
256.0047 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
256.00 € *
Price list
Quantity
Price per unit*
3 pcs.
256.0047 €
50 pcs.
154.9856 €
*incl. VAT plus shipping costs
**Subject to prior sale

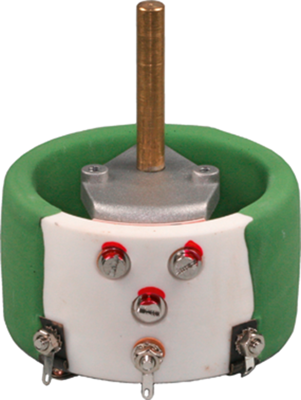

Ceramic wire-wound potentiometers, type KRAH-RWI D 85/100.

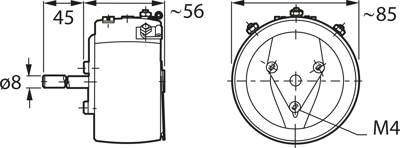

Rated power: 100 W. Max. load rating: 140 W/40 °C, compliant with DIN 41475. Tolerance: ±10 %, with 8.0 mm shaft. Shaft length: 45 mm. Test voltage: 2500 VAC. Mechanical/electrical range of adjustment: 280/270°.
Type: 470R
Technical specifications
| ohmic resistance | 470 Ω | |
| Connection | solder lug | |
| Version | ceramic wire potentiometer | |
| Width | 56 mm | |
| Rotary range, electrical | 270 ° | |
| Mechanic rotary range | 280 ° | |
| axle diameter | 8 mm | |
| Length | 85 mm | |
| Power | 100 W | |
| Assembly | straight | |
| Track Taper | linear |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85333900 |
| Original Packaging | Bulk with 3 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
