VHPR 100 H 47R K 300 | KRAH

Wirewound resistor, 47 Ω, 100 W, ±10 %, VHPR 100 H 47R K 300

Order No.: 62E754
EAN: 4099879698131
MPN:
VHPR 100 H 47R K 300
Series: VHPR
KRAH

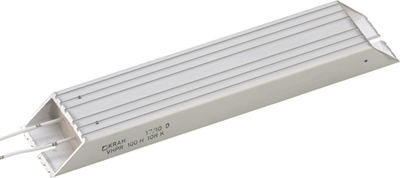

VHPR 100 H 47R K 300 KRAH Wirewound Resistors
Image may differ
Print
Key Specification:
ohmic resistance 47 Ω
Tolerance ±10 %
Power 100 W
Design chassis
Assembly chassis mounting
Show 9 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
63.2485 € *
Available: 2 pcs.
Next delivery: 10 pcs. on 2025-02-07
Leadtime: 8 Weeks **
Total Price:
63.25 € *
Price list
Quantity
Price per unit*
1 pcs.
63.2485 €
5 pcs.
58.5718 €
10 pcs.
55.2398 €
25 pcs.
52.1220 €
50 pcs.
42.3521 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Braking/power resistors, type KRAH VHPR.

In aluminum profile, high voltage/pulse strength

Braking/power resistors, 100 W, type VHPR 100.
Technical specifications
ohmic resistance 47 Ω
Version Braking/power wire-wound resistor
Design chassis
Width 40 mm
Height 21 mm
Length 167 mm
Power 100 W
max. operating temperature 200 °C
min. operating temperature -40 °C
Assembly chassis mounting
Tolerance ±10 %
Temperature coefficient -80/+1200 ppm/K
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85332900
Original Packaging Bulk with 10 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
