VHPR 500 H 68R K 300 | KRAH

Wirewound resistor, 68 Ω, 500 W, ±10 %, VHPR 500 H 68R K 300

Order No.: 62E776
EAN: 4099879698216
MPN:
VHPR 500 H 68R K 300
Series: VHPR
KRAH
VHPR 500 H 68R K 300 KRAH Wirewound Resistors

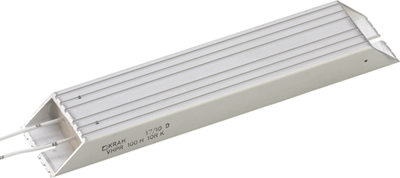

Image may differ
Print
Key Specification:
ohmic resistance 68 Ω
Tolerance ±10 %
Power 500 W
Design chassis
Assembly chassis mounting
Show 9 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
109.0992 € *
Available: 33 pcs.
Leadtime: 8 Weeks **
Total Price:
109.10 € *
Price list
Quantity
Price per unit*
1 pcs.
109.0992 €
5 pcs.
103.6371 €
10 pcs.
101.4594 €
20 pcs.
99.2817 €
100 pcs.
93.8196 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Braking/power resistors, type KRAH VHPR.

In aluminum profile, high voltage/pulse strength

Braking/power resistors, 500 W, type VHPR 500.
Technical specifications
ohmic resistance 68 Ω
Version Braking/power wire-wound resistor
Design chassis
Width 60 mm
Height 31 mm
Length 337 mm
Power 500 W
max. operating temperature 200 °C
min. operating temperature -40 °C
Assembly chassis mounting
Tolerance ±10 %
Temperature coefficient -80/+1200 ppm/K
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85332900
Original Packaging Bulk with 5 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
