KG64B.T203/01.E | Kraus & Naimer

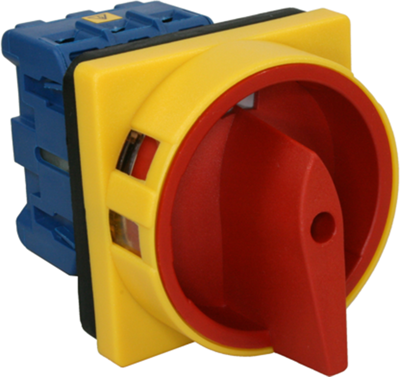

Main switch, Rotary actuator, 3 pole, 63 A, 690 V, front mounting, KG64B.T203/01.E
Unit Price (€ / pc.)
87.9886 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
87.99 € *
Price list
Quantity
Price per unit*
1 pcs.
87.9886 €
5 pcs.
83.0977 €
10 pcs.
78.2068 €
25 pcs.
73.3278 €
50 pcs.
70.8764 €
*incl. VAT plus shipping costs
**Subject to prior sale
Main switches with emergency-off function, type Kraus & Naimer KG.
To IEC/EN 60947, ICE/EN 60204, VDE 0660, and VDE 0113, 3-pole, for front panel four-hole mounting; Degree of protection: IP 66. Dielectric strength (valid on mains with grounded star point): 690 V. Overvoltage category: III. Degree of soiling: 3. Cross-section for fine-wire with wire end ferrule: max. 10 mm². Front-panel size: 64 x 64 mm.
Technical attributes (type, continuous current, breaking capacity (3 x 380 V/440 V), mounting depth): KG64B T203/01 E, 63 A, 22 kW, 60.5 mm
Technical specifications
| Actuator | Rotary actuator | |
| Permanent current | 63 A | |
| Isolation voltage | 690 V | |
| Assembly | front mounting | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP66 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
