52001150 | LAPP

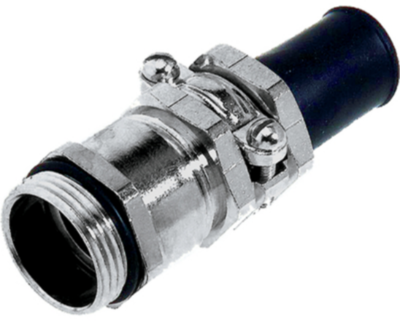

Cable gland with bend protection, PG36, 50/50 mm, Clamping range 23 to 26 mm, IP65, silver gray, 52001150
Unit Price (€ / pc.)
58.6789 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
58.68 € *
Price list
Quantity
Price per unit*
1 pcs.
58.6789 €
10 pcs.
55.4183 €
25 pcs.
52.1577 €
50 pcs.
48.8971 €
100 pcs.
45.6365 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable gland, 52001170, LAPP
SKINDICHT® SR, robust PG brass cable gland with bending & anti-kink protection, high degree of protection,for cables with large outer diameters
BENEFITS
- Reliable bending and anti-kink protection
- High strain relief
- For cables with large outer diameters
- High degree of protection
TECHNICAL DATA
- Protection rating: IP75
- Temperature range: -20 °C to 80 °C
- Material: Brass, nickel-plated
Technical specifications
| Version | cable gland with bend protection | |
| Colour | silver gray | |
| Thread size | PG36 | |
| Length | 110 mm | |
| Material | brass, nickel-plated | |
| max. clamping range | 26 mm | |
| max. operating temperature | 80 °C | |
| min. clamping range | 23 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 50/50 mm | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
