52001894 | LAPP
Cable gland, M10, 14/14 mm, Clamping range 5.5 to 7 mm, IP66/IP68, metal, 52001894
Unit Price (€ / pc.)
11.6739 € *
Available: 40 pcs.
Leadtime: 6 Weeks **
Total Price:
11.67 € *
Price list
Quantity
Price per unit*
1 pcs.
11.6739 €
10 pcs.
10.2697 €
50 pcs.
9.5795 €
100 pcs.
9.1511 €
500 pcs.
8.6751 €
*incl. VAT plus shipping costs
**Subject to prior sale

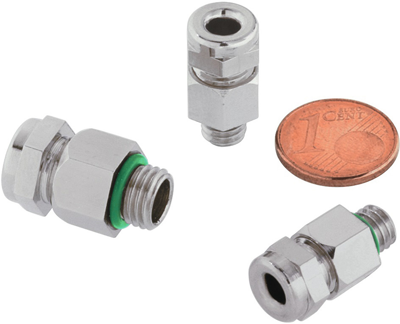

Cable gland, 52001894, LAPP
Cable gland for the smallest conductor sizes and high packing density, gentle cable clamping and high degree of protection.
Features
- Suitable for high temperature and aggressive media surroundings
- For high temperature ranges up to max. +200°C
- Good chemical resistance
- Heat-resistant
- Acid-resistant
- Space requirement
Applications
- For use wherever there is limited assembly space
- Sensors
- Measurement and control technology
Technical specifications
| Version | cable gland | |
| Colour | metal | |
| Thread size | M10 | |
| Length | 22.3 mm | |
| Material | brass, nickel-plated | |
| max. clamping range | 7 mm | |
| max. operating temperature | 200 °C | |
| min. clamping range | 5.5 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 14/14 mm | |
| Degree of protection (IP) | IP66/IP68 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
