52015700 | LAPP
Cable gland, PG7, 14 mm, Clamping range 2 to 6.5 mm, IP68, 52015700
Unit Price (€ / pc.)
4.2245 € *
Available: 92 pcs.
Leadtime: 1 Week **
Total Price:
4.22 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2245 €
10 pcs.
3.7128 €
100 pcs.
3.2725 €
250 pcs.
3.1297 €
1000 pcs.
2.9274 €
*incl. VAT plus shipping costs
**Subject to prior sale

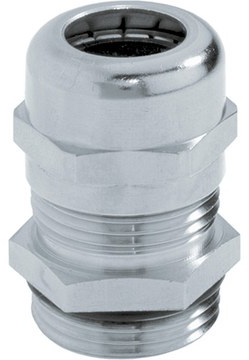

Cable gland, 52015700, LAPP
Cable gland with maximum reliability, in areas where mechanical and chemical stability are critical.
Features
- Good chemical resistance
- Corrosion-resistant
- Optimum strain relief
- Temperature-resistant
Technical specifications
| Thread size | PG7 | |
| Length | 25 mm | |
| Material | Messing, vernickelt | |
| max. clamping range | 6.5 mm | |
| max. operating temperature | 100 °C | |
| min. clamping range | 2 mm | |
| min. operating temperature | -25 °C | |
| Product type | Kabelverschraubung | |
| spanner size | 14 mm | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
