52104314 | LAPP

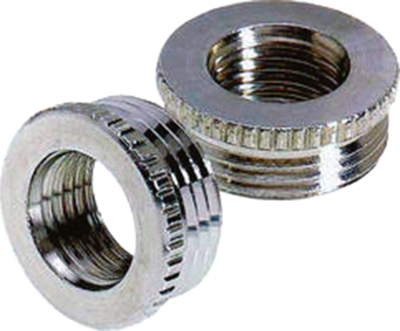

Adapter, M20 to M25, silver, 52104314
Unit Price (€ / pc.)
3.5462 € *
Available: 27 pcs.
Leadtime: 1 Week **
Total Price:
3.55 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5462 €
10 pcs.
3.2249 €
50 pcs.
2.9036 €
100 pcs.
2.6537 €
500 pcs.
2.4157 €
*incl. VAT plus shipping costs
**Subject to prior sale
Metric reducing nuts made of brass, series SKINDICHT MR-M, type Lapp Kabel 5210.
Nickel-plated, for screwed cable glands etc. For reducing the size of threaded holes to suit the screwed cable gland; Operating temperatures: –60 to +200 °C.
Technical attributes (type, outer thread, inner thread): 52104314, AG M 25, IG M 20
Technical specifications
| Version | Adapter | |
| Colour | silber | |
| Thread size | M20 auf M25 | |
| Length | 10 mm | |
| Material | Messing, vernickelt | |
| max. operating temperature | 200 °C | |
| min. operating temperature | -60 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
