52104452 | LAPP

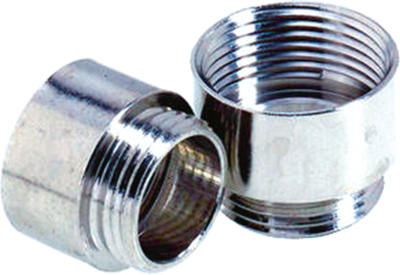

Adapter, M16 to M20, silver, 52104452
Unit Price (€ / pc.)
2.8441 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.84 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8441 €
10 pcs.
2.5823 €
50 pcs.
2.3205 €
100 pcs.
2.1301 €
500 pcs.
1.9397 €
*incl. VAT plus shipping costs
**Subject to prior sale
Metric expansion nuts made of brass, series SKINDICHT ME-M, type Lapp Kabel 5210.
Nickel-plated, for screwed cable glands etc. For expanding the size of threaded holes to suit the screwed cable gland; Operating temperatures: –60 to +200 °C.
Technical attributes (type, outer thread, inner thread): 52104452, AG M 16, IG M 20
Technical specifications
Version | adapter | |
Colour | silver | |
Thread size | M16 to M20 | |
Length | 17.5 mm | |
Material | brass, nickel-plated | |
max. operating temperature | 200 °C | |
min. operating temperature | -60 °C |
Download
Logistics
Country of origin | DE |
Customs tariff number | 74198090 |
Compliance
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
