52104456 | LAPP
Adapter, M25 to M32, silver, 52104456
Unit Price (€ / pc.)
6.1642 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
6.16 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1642 €
10 pcs.
5.6168 €
50 pcs.
5.0575 €
100 pcs.
4.6291 €
500 pcs.
4.2126 €
*incl. VAT plus shipping costs
**Subject to prior sale

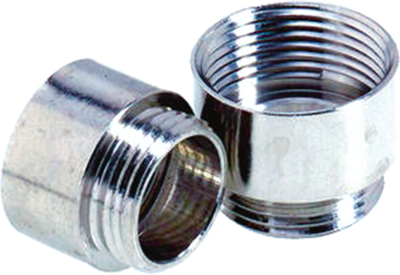

Metric expansion nuts made of brass, series SKINDICHT ME-M, type Lapp Kabel 5210.
Nickel-plated, for screwed cable glands etc. For expanding the size of threaded holes to suit the screwed cable gland; Operating temperatures: –60 to +200 °C.
Technical attributes (type, outer thread, inner thread): 52104456, AG M 25, IG M 32
Technical specifications
| Ausführung | Adapter | |
| Farbe | silber | |
| Gewindegröße | M25 auf M32 | |
| Länge | 21 mm | |
| Material | Messing, vernickelt | |
| max. Temperatur | 200 °C | |
| min. Temperatur | -60 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 74198090 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
