52105610 | LAPP

Cable gland, M20, 22/22 mm, Clamping range 9 to 11 mm, IP65, 52105610

Order No.: 32P2237
EAN: 4044773173604
MPN:
52105610
SKINDICHTSRE-M 20x1,5/13,5/11/
Series: SKINDICHT SRE
LAPP

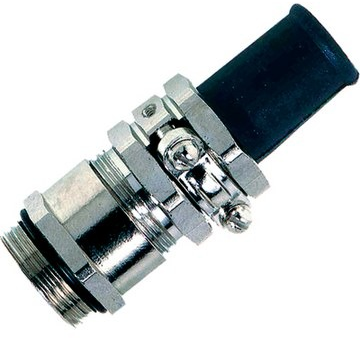

52105610 LAPP Cable Glands Image 1
52105610 LAPP Cable Glands Image 2
Image may differ
Print
Key Specification:
Version cable gland
Thread size M20
min. clamping range 9 mm
max. clamping range 11 mm
spanner size 22/22 mm
Show 14 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
14.8036 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
14.80 € *
*incl. VAT plus shipping costs
**Subject to prior sale
25 pcs.
14.8036 €
Description
Technical specifications
Download
Logistics
Compliance
Variations
Technical specifications
Version cable gland
Thread size M20
Length 59.5 mm
Material brass, nickel-plated
max. clamping range 11 mm
max. operating temperature 80 °C
min. clamping range 9 mm
min. operating temperature -20 °C
spanner size 22/22 mm
Degree of protection (IP) IP65
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 74198090
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
