52105720 | LAPP

Cable gland, M40, 50/50 mm, Clamping range 27 to 30 mm, IP65, 52105720

Order No.: 32P2248
EAN: 4044773173246
MPN:
52105720
SKINDICHTSRE-M 40x1,5/36/30/24
Series: SKINDICHT SRE
LAPP

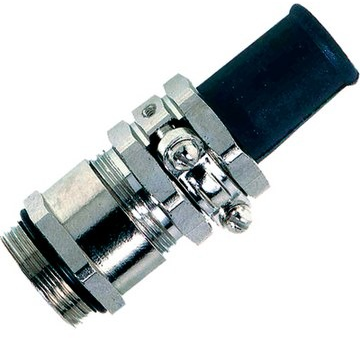

52105720 LAPP Cable Glands Image 1

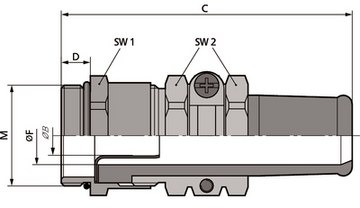

52105720 LAPP Cable Glands Image 2
Image may differ
Print
Key Specification:
Version cable gland
Thread size M40
min. clamping range 27 mm
max. clamping range 30 mm
spanner size 50/50 mm
Show 14 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
66.3544 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
66.35 € *
*incl. VAT plus shipping costs
**Subject to prior sale
5 pcs.
66.3544 €
Description
Technical specifications
Download
Logistics
Compliance
Variations
Technical specifications
Version cable gland
Thread size M40
Length 108 mm
Material brass, nickel-plated
max. clamping range 30 mm
max. operating temperature 80 °C
min. clamping range 27 mm
min. operating temperature -20 °C
spanner size 50/50 mm
Degree of protection (IP) IP65
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 74198090
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
