52105840 | LAPP

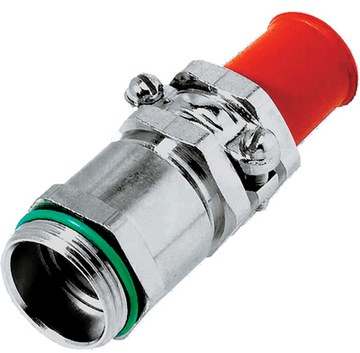

Cable gland, M20, 20/22 mm, Clamping range 7.5 to 9 mm, IP65, 52105840
Order No.: 32P2294
EAN: 4044773172980
MPN:
52105840
SKINDICHTSR-SV-M 20x1,5/13,5/9
Series: SKINDICHT SR-SV
Unit Price (€ / pc.)
47.3025 € *
Available: 0 pcs.
Leadtime: On Request **
Technical specifications
| Version | cable gland | |
| Thread size | M20 | |
| Length | 58 mm | |
| Material | brass, nickel-plated | |
| max. clamping range | 9 mm | |
| max. operating temperature | 165 °C | |
| min. clamping range | 7.5 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 20/22 mm | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
