52105850 | LAPP

Cable gland, M20, 22/22 mm, Clamping range 8.5 to 11 mm, IP65, 52105850

Order No.: 32P2287
EAN: 4044773172935
MPN:
52105850
SKINDICHT SR-SV-M 20x1,5/13,5/
Series: SKINDICHT SR-SV
LAPP

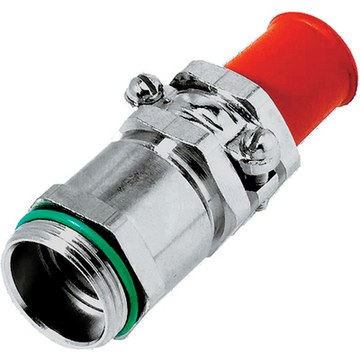

52105850 LAPP Cable Glands Image 1
52105850 LAPP Cable Glands Image 2
Image may differ
Print
Key Specification:
Version cable gland
Thread size M20
min. clamping range 8.5 mm
max. clamping range 11 mm
spanner size 22/22 mm
Show 10 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
47.3025 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
47.30 € *
*incl. VAT plus shipping costs
**Subject to prior sale
25 pcs.
47.3025 €
Description
Technical specifications
Download
Logistics
Compliance
Variations
Technical specifications
Version cable gland
Thread size M20
Length 58 mm
Material brass, nickel-plated
max. clamping range 11 mm
max. operating temperature 165 °C
min. clamping range 8.5 mm
min. operating temperature -20 °C
spanner size 22/22 mm
Degree of protection (IP) IP65
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 74198090
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
