52106520 | LAPP
Cable gland with bend protection, PG21, 30/30 mm, Clamping range 17 to 20 mm, IP65, 52106520
Order No.: 32P2262
EAN: 4044773170900
MPN:
52106520
SKINDICHT SR-M 25x1,5/21/20
Series: SKINDICHT SR-M
Unit Price (€ / pc.)
15.6723 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
15.67 € *
Price list
Quantity
Price per unit*
25 pcs.
15.6723 €
50 pcs.
14.6251 €
*incl. VAT plus shipping costs
**Subject to prior sale

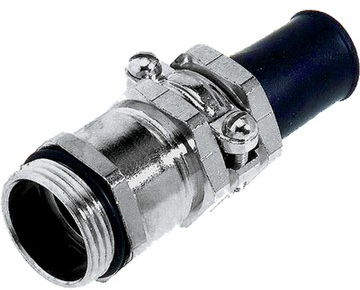

Cable gland, 52106520, LAPP
SKINDICHT® SR-M, robust, metric cable gland with reliable bending and anti-kink protection for cables with large outer diameters.
BENEFITS
- Reliable bending and anti-kink protection
- High strain relief
- For cables with large outer diameters
- High degree of protection
TECHNICAL DATA
- Protection rating: IP65
- Temperature range: -20 °C to 80 °C
- Material: Brass, nickel-plated
Technical specifications
| Version | cable gland with bend protection | |
| Thread size | PG21 | |
| Length | 78.5 mm | |
| Material | brass, nickel-plated | |
| max. clamping range | 20 mm | |
| max. operating temperature | 80 °C | |
| min. clamping range | 17 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 30/30 mm | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
