53015240 | LAPP
Cable gland, PG16, 27 mm, Clamping range 9 to 14 mm, IP68, black, 53015240
Unit Price (€ / pc.)
1.6422 € *
Available: 45 pcs.
Leadtime: 1 Week **
Total Price:
1.64 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6422 €
10 pcs.
1.4280 €
100 pcs.
1.3209 €
500 pcs.
1.2138 €
1000 pcs.
1.1067 €
*incl. VAT plus shipping costs
**Subject to prior sale

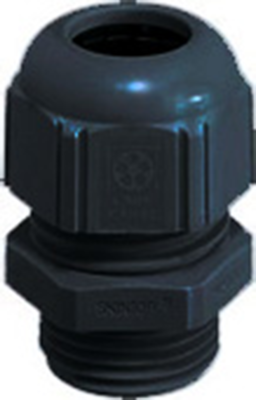

Screwed cable glands series SKINTOP ST, type Lapp Kabel 5301.
To VDE and UL, for optimal and absolutely protective strain relief of the cable for optimal and absolutely protective strain relief of the cable. Fixing, Centering, sealing and strain relief in a single pass by tightening the pressure screw; Degree of protection: IP 68. Material: polyamide. Seal: CR. Operating temperatures: –20 to +80 °C. The locknut is not included (please order separately).

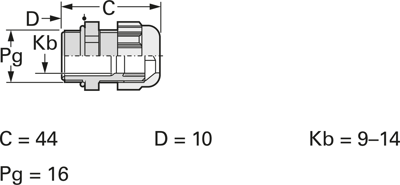

Technical attributes (Pg size, cable clamping range, dimensions (C/D), width across flats (W) in [mm], color (silver gray/RAL 7001, black/RAL 9005)): Pg 16, 9.0 to 14 mm, C 44/D 10 mm, W 27, black
Technical specifications
| Version | cable gland | |
| Colour | black | |
| Thread size | PG16 | |
| Length | 44 mm | |
| Material | PA | |
| max. clamping range | 14 mm | |
| max. operating temperature | 80 °C | |
| min. clamping range | 9 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 27 mm | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
