53111200 | LAPP
Cable gland, M12, 15 mm, Clamping range 3 to 7 mm, IP68, black, 53111200
Unit Price (€ / pc.)
0.6545 € *
Available: 212 pcs.
Leadtime: 1 Week **
Total Price:
0.65 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6545 €
10 pcs.
0.6069 €
100 pcs.
0.5593 €
500 pcs.
0.5236 €
1000 pcs.
0.4760 €
*incl. VAT plus shipping costs
**Subject to prior sale

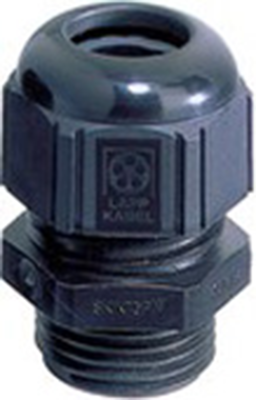

Metric screwed cable glands series SKINTOP ST-M, type Lapp Kabel 5311.
For reliable and absolutely protective strain relief of the cable. Fixing, centering, sealing and strain relief in a single pass by tightening the pressure screw; Material: polyamide. Seal ring: CR. Operating temperatures: –40 to +100 °C. Degree of protection: IP 69 K. The locknut is not included (please order separately).

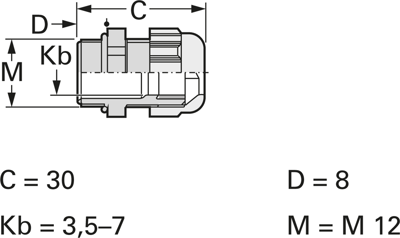

Technical attributes (thread, cable clamping range, dimensions (C/D), color (silver gray/RAL 7001, black/RAL 9005)): M 12, 3.5 to 7.0 mm, C 30/D 8.0 mm, black
Technical specifications
| Ausführung | Kabelverschraubung | |
| Farbe | schwarz | |
| Gewindegröße | M12 | |
| Länge | 30 mm | |
| Material | PA | |
| max. Klemmbereich | 7 mm | |
| max. Temperatur | 100 °C | |
| min. Klemmbereich | 3 mm | |
| min. Temperatur | -20 °C | |
| Schlüsselweite | 15 mm | |
| Schutzart (IP) | IP68 |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 39269097 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
