53111220 | LAPP

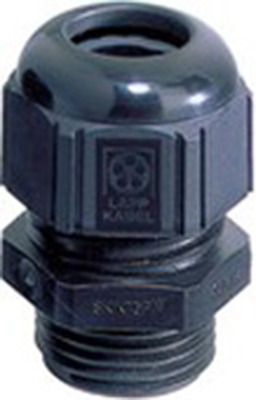

Cable gland, M20, 25 mm, Clamping range 7 to 13 mm, IP68, black, 53111220
Unit Price (€ / pc.)
1.0710 € *
Available: 97 pcs.
Leadtime: 1 Week **
Total Price:
1.07 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0710 €
10 pcs.
0.9996 €
100 pcs.
0.9163 €
500 pcs.
0.8568 €
1000 pcs.
0.7854 €
*incl. VAT plus shipping costs
**Subject to prior sale
Metric screwed cable glands series SKINTOP ST-M, type Lapp Kabel 5311.
For reliable and absolutely protective strain relief of the cable. Fixing, centering, sealing and strain relief in a single pass by tightening the pressure screw; Material: polyamide. Seal ring: CR. Operating temperatures: –40 to +100 °C. Degree of protection: IP 69 K. The locknut is not included (please order separately).

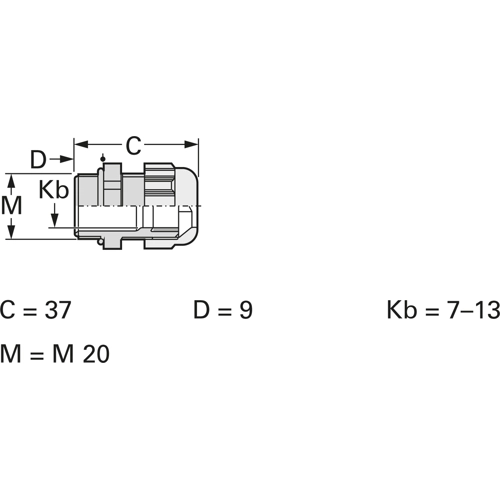

Technical attributes (thread, cable clamping range, dimensions (C/D), color (silver gray/RAL 7001, black/RAL 9005)): M 20, 7.0 to 13 mm, C 37/D 9.0 mm, black
Technical specifications
| Version | Kabelverschraubung | |
| Colour | schwarz | |
| Thread size | M20 | |
| Length | 37 mm | |
| Material | PA | |
| max. clamping range | 13 mm | |
| max. operating temperature | 100 °C | |
| min. clamping range | 7 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 25 mm | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
