53111250 | LAPP

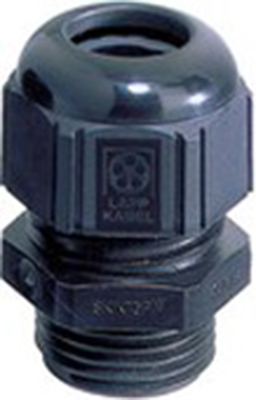

Cable gland, M40, 46 mm, Clamping range 19 to 28 mm, IP68, black, 53111250
Unit Price (€ / pc.)
6.0095 € *
Available: 0 pcs.
Leadtime: 28 Weeks **
Total Price:
6.01 € *
Price list
Quantity
Price per unit*
1 pcs.
6.0095 €
10 pcs.
5.5573 €
100 pcs.
5.1051 €
500 pcs.
4.8076 €
1000 pcs.
4.3554 €
*incl. VAT plus shipping costs
**Subject to prior sale

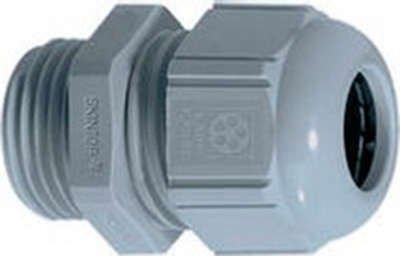

Metric screwed cable glands series SKINTOP ST-M, type Lapp Kabel 5311.
For reliable and absolutely protective strain relief of the cable. Fixing, centering, sealing and strain relief in a single pass by tightening the pressure screw; Material: polyamide. Seal ring: CR. Operating temperatures: –40 to +100 °C. Degree of protection: IP 69 K. The locknut is not included (please order separately).

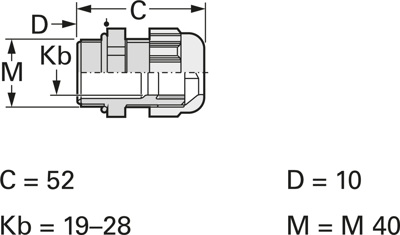

Technical attributes (thread, cable clamping range, dimensions (C/D), color (silver gray/RAL 7001, black/RAL 9005)): M40, 19 to 28 mm, C 52/D 10 mm, black
Technical specifications
| Version | cable gland | |
| Colour | black | |
| Thread size | M40 | |
| Length | 52 mm | |
| Material | PA | |
| max. clamping range | 28 mm | |
| max. operating temperature | 100 °C | |
| min. clamping range | 19 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 46 mm | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
