53111720 | LAPP

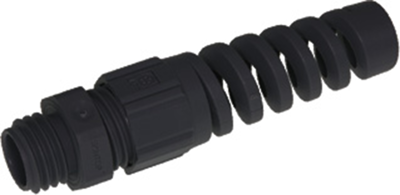

Cable gland with bend protection, M20, 25 mm, Clamping range 7 to 13 mm, IP68, black, 53111720
Unit Price (€ / pc.)
1.6303 € *
Available: 45 pcs.
Leadtime: 1 Week **
Total Price:
1.63 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6303 €
25 pcs.
1.4399 €
100 pcs.
1.3209 €
500 pcs.
1.2495 €
1000 pcs.
1.1305 €
*incl. VAT plus shipping costs
**Subject to prior sale
Metric screwed cable glands series SKINTOP BS-M, type Lapp Kabel 5311.
For optimum protective strain relief. With flexible kink protection spiral; Material: polyamide. Seal ring: CR. Operating temperatures: –20 to +100 °C. Degree of protection: IP 68. Mounting: using the locknut described below (available on separate order).

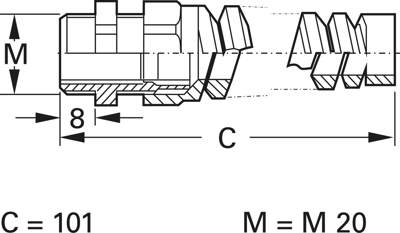

Technical attributes (thread, cable clamping range, dimensions (C/D), color (silver gray/RAL 7001, black/RAL 9005)): M 20, 7.0 to 13 mm, C 101 mm, black
Technical specifications
| Version | cable gland with bend protection | |
| Colour | black | |
| Thread size | M20 | |
| Length | 101 mm | |
| Material | PA | |
| max. clamping range | 13 mm | |
| max. operating temperature | 100 °C | |
| min. clamping range | 7 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 25 mm | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
