53112907 | LAPP

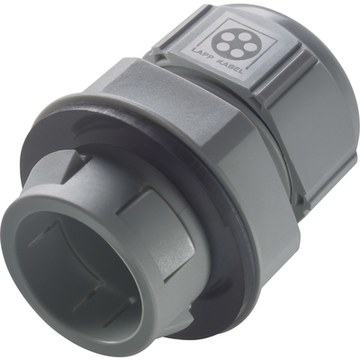

Cable gland, M20, 25/27 mm, Clamping range 7 to 13 mm, IP68, gray, 53112907
Order No.: 32P3163
EAN: 4044773822786
MPN:
53112907
SKINTOP CLICK BS 20 RAL7001 GY
Series: SKINTOP CLICK BS
Unit Price (€ / pc.)
2.7251 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.73 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7251 €
10 pcs.
2.5109 €
25 pcs.
2.3800 €
50 pcs.
2.2372 €
100 pcs.
2.0944 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable gland, 53112907, LAPP
SKINTOP® CLICK, plastic cable gland with time-saving CLICK system, simple, free assembly and vibration protection, no thread required
BENEFITS
- Save up to 70% of the time with the innovative CLICK system
- Simple, free assembly in any position
- Vibration protection
- No thread required
TECHNICAL DATA
- Protection rating: IP68
- Temperature range: -20 °C to 100 °C
- Material: Special Polyamide
The most innovative cable insertion system in the market for a fast and highly flexible assembly. Simply click in - turn to the left - turn to the right - finished. The result: fixed, centred, strain-relieved fitting and maximum protection class in a few seconds.
Technical specifications
| Version | Kabelverschraubung | |
| Colour | grau | |
| Thread size | M20 | |
| Length | 108 mm | |
| Material | PA | |
| max. clamping range | 13 mm | |
| max. operating temperature | 100 °C | |
| min. clamping range | 7 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 25/27 mm | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
