53112912 | LAPP
Cable gland, M25, 30/34 mm, Clamping range 9 to 17 mm, IP68, black, 53112912
Order No.: 32P3168
EAN: 4044773822922
MPN:
53112912
SKINTOP CLICK BS 25 RAL9005 BK
Series: SKINTOP CLICK BS
Unit Price (€ / pc.)
3.1178 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3.12 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1178 €
10 pcs.
2.8798 €
25 pcs.
2.7132 €
50 pcs.
2.5585 €
100 pcs.
2.4038 €
*incl. VAT plus shipping costs
**Subject to prior sale

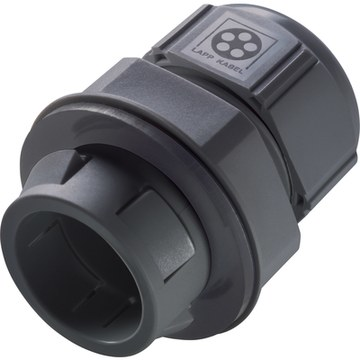

Cable gland, 53112912, LAPP
SKINTOP® CLICK, plastic cable gland with time-saving CLICK system, simple, free assembly and vibration protection, no thread required
BENEFITS
- Save up to 70% of the time with the innovative CLICK system
- Simple, free assembly in any position
- Vibration protection
- No thread required
TECHNICAL DATA
- Protection rating: IP68
- Temperature range: -20 °C to 100 °C
- Material: Special Polyamide
The most innovative cable insertion system in the market for a fast and highly flexible assembly. Simply click in - turn to the left - turn to the right - finished. The result: fixed, centred, strain-relieved fitting and maximum protection class in a few seconds.
Technical specifications
| Ausführung | Kabelverschraubung | |
| Farbe | schwarz | |
| Gewindegröße | M25 | |
| Länge | 127 mm | |
| Material | PA | |
| max. Klemmbereich | 17 mm | |
| max. Temperatur | 100 °C | |
| min. Klemmbereich | 9 mm | |
| min. Temperatur | -20 °C | |
| Schlüsselweite | 30/34 mm | |
| Schutzart (IP) | IP68 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 39269097 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
