61797401 | LAPP
Uninsulated tube cable lug, 50 mm², AWG 1/0, 8 mm, M8, metal, 61797401
Order No.: 33P5489
EAN: 4044776795728
MPN:
61797401
ROHRKABELSCHUH KRFN 50/8
Unit Price (€ / pc.)
7.497 € *
Available: 0 pcs.
Leadtime: On Request **

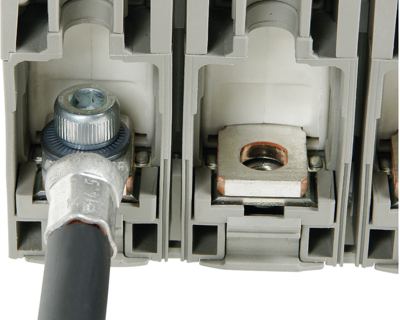

Tube cable lug, 61797401, LAPP
Tube cable lug with narrow palm for cable class 2 and 5.
Features
- Can be installed through cable glands, allowing pre-assembly
- High-quality electrolytic copper ensures a good crimping quality
Applications
- Narrow tube cable lugs for stranded and flexible CU-conductors 50-240 mm²
- Adapted for narrow spaces
Technical specifications
| Version | tube cable lug | |
| AWG cross-section | AWG 1/0 | |
| Colour | metal | |
| Thread size | M8 | |
| Isolated | No | |
| Cable cross-section | 50 mm² | |
| Hole diameter | 8 mm | |
| Material | electrolytic copper | |
| max. operating temperature | 90 °C | |
| shrinkable tubing | No |
Download
Logistics
| Country of origin | SE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
