61803060 | LAPP
Uninsulated tube cable lug, 25 mm², AWG 4, 6 mm, M6, metal, 61803060
Order No.: 33P5457
EAN: 4044773203042
MPN:
61803060
ROHRKABELSCHUH KRF 25/6
Unit Price (€ / pc.)
1.7850 € *
Available: 0 pcs.
Next delivery: 94 pcs. on 2025-02-21
Leadtime: On Request **
Total Price:
1.79 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7850 €
10 pcs.
1.5589 €
50 pcs.
1.4399 €
100 pcs.
1.3209 €
500 pcs.
1.2376 €
*incl. VAT plus shipping costs
**Subject to prior sale

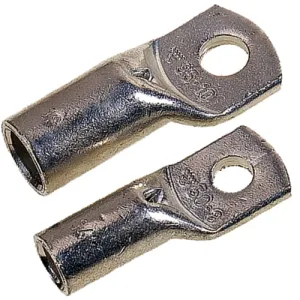

Tube cable lug, 61803060, LAPP
Tube cable lug with inspection hole.
Features
- High-quality electrolytic copper ensures a good crimping quality
Applications
- Mainly for connection to rails and to copper connectors
- Max. 48 Kv
Technical specifications
| Ausführung | Rohrkabelschuh | |
| AWG-Leiterquerschnitt | AWG 4 | |
| Farbe | metall | |
| Gewindegröße | M6 | |
| Isoliert | No | |
| Leiterquerschnitt | 25 mm² | |
| Lochdurchmesser | 6 mm | |
| Material | Elektrolytkupfer | |
| max. Temperatur | 90 °C | |
| Schrumpfschlauch | No |
Download
Logistics
| Ursprungsland | SE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
